Lab 8 Solution

Lab Instructor: Valeria Barra

Contents

Called Functions

DUE Tuesday 03-22-2016

Problem 1: Numerical Differentiation - First Order Forward Derivative VS First Order Centered Derivative

Use the first order forward and centered finite difference scheme to approximate the first derivative of the function $f(x)=exp(x)$ at the point $x_0= 0$, with $h= 10^{-n}$, with $n=1,2, \ldots, 9$. Write your results and errors in a table to compare the order of accuracy of the two schemes.

Solution:

clear all; clc; close all;
syms x;
f=exp(x);
x0=0;
h=10.^-(1:9);
FirstDiffExact=diff(f);
FirstDiffEval=double(subs(FirstDiffExact,0));
fprintf('_________________________________________________Problem 1 Table________________________________________________________________________________\n\n')
fprintf('      %s           %s          %s           %s               %s           %s        %s   \n','h','D_f(f)','Err D_f(f)','D_c(f)','Err D_c(f)','Ratio Err_D_f(f)','Ratio Err_D_c(f)')
fprintf('________________________________________________________________________________________________________________________________________________\n\n')
for i=1:length(h)
    DFirstForward(i)=FirstForwardDiff(f,x,x0,h(i));
    DFirstCentered(i)=FirstCenteredDiff(f,x,x0,h(i));
    ErrorForward(i)=abs(FirstDiffEval - (DFirstForward(i)));
    ErrorCentered(i)=abs(FirstDiffEval -(DFirstCentered(i)));
    if i>=2
        RatioForward(i-1)=ErrorForward(i)/ErrorForward(i-1);
        RatioCentered(i-1)=ErrorCentered(i)/ErrorCentered(i-1);
        fprintf(' %2.0e    %16.14f    %16.14f     %16.14f       %16.14f           % 8.2g              % 8.2g \n',h(i),(DFirstForward(i)),ErrorForward(i),(DFirstCentered(i)),ErrorCentered(i),RatioForward(i-1),RatioCentered(i-1) );
    else
        fprintf(' %2.0e    %16.14f    %16.14f     %16.14f       %16.14f \n',h(i),(DFirstForward(i)),ErrorForward(i),(DFirstCentered(i)),ErrorCentered(i));
    end
end
fprintf('________________________________________________________________________________________________________________________________________________\n\n\n')

_________________________________________________Problem 1 Table________________________________________________________________________________

      h           D_f(f)          Err D_f(f)           D_c(f)               Err D_c(f)           Ratio Err_D_f(f)        Ratio Err_D_c(f)
________________________________________________________________________________________________________________________________________________

 1e-01    1.05170918075648    0.05170918075648     1.00166750019844       0.00166750019844
 1e-02    1.00501670841679    0.00501670841679     1.00001666674999       0.00001666674999              0.097                  0.01
 1e-03    1.00050016670838    0.00050016670838     1.00000016666668       0.00000016666668                0.1                  0.01
 1e-04    1.00005000166714    0.00005000166714     1.00000000166689       0.00000000166689                0.1                  0.01
 1e-05    1.00000500000696    0.00000500000696     1.00000000001210       0.00000000001210                0.1                0.0073
 1e-06    1.00000049996218    0.00000049996218     0.99999999997324       0.00000000002676                0.1                   2.2
 1e-07    1.00000004943368    0.00000004943368     0.99999999947364       0.00000000052636              0.099                    20
 1e-08    0.99999999392253    0.00000000607747     0.99999999392253       0.00000000607747               0.12                    12
 1e-09    1.00000008274037    0.00000008274037     1.00000002722922       0.00000002722922                 14                   4.5
________________________________________________________________________________________________________________________________________________

Conclusions: We can see that the centered derivative is more accurate than the forward one (second order of accuracy vs first). Since we divide h by ten, we can see that the error ratio is roughly 0.1 for the first order scheme (i. e. the error also is divided by ten), while it is roughly 0.01 for the second order scheme. These ratios eventually blow up for small values of h due to h being to small (dividing approximately by zero propagates the error)

Problem 2: Numerical Differentiation - Centered VS Truncated Derivative

Use the centered finite difference scheme to approximate the second derivative of the function $f(x)= \cos(x)$ at the point $x_0= \pi / 6$, with $h= 2^{-n}$, with $n=1,2, \ldots, 9$. Do the same with a truncated version of the evaluations of the function $\hat{f}(x_i)$, up to 6 digits of precision. Write your results and errors in a table and compare the exact evaluations and the truncated ones.

Solution:

syms x;
f=cos(x);
x0=pi/6;
den=(2.^(1:9));
h=1./den;

CenteredDiffExact=diff(f,2);
CenteredDiffEval=double(subs(CenteredDiffExact,pi/6));

fprintf('_____________________________________________Problem 2 Table_______________________________________________________________________________\n\n')
fprintf('      %s           %s          %s         %s        %s      %s      %s \n','h','D_c^2(f)','D_c^2(hat(f))','Err D_c^2(f)','Err D_c^2(hat(f))','Ratio Err_E','Ratio Err_Tr')
fprintf('___________________________________________________________________________________________________________________________________________\n\n')
for i=1:length(h)
    D(i)=SecondCenteredDiff(f,x0,h(i));
    DRound(i)=SecondCenteredDiffRoundedOff(f,x0,h(i));
    ErrorExact(i)=abs(CenteredDiffEval - (D(i)));
    ErrorRound(i)=abs(CenteredDiffEval - (DRound(i)));
    if i>=2
        RatioExact(i-1)=ErrorExact(i)/ErrorExact(i-1);
        RatioRound(i-1)=ErrorRound(i)/ErrorRound(i-1);
        fprintf(' %3.0i / %3.0i    %16.14f    %16.14f     %16.14f     %16.14f       % 8.2g         % 8.2g \n',1,den(i),(D(i)),(DRound(i)),ErrorExact(i),(ErrorRound(i)),RatioExact(i-1),(RatioRound(i-1)) );
    else
        fprintf(' %3.0i / %3.0i    %16.14f    %16.14f     %16.14f     %16.14f \n',1,den(i),(D(i)),(DRound(i)),ErrorExact(i),(ErrorRound(i)));
    end
end
fprintf('___________________________________________________________________________________________________________________________________________\n\n\n')

% plotting here

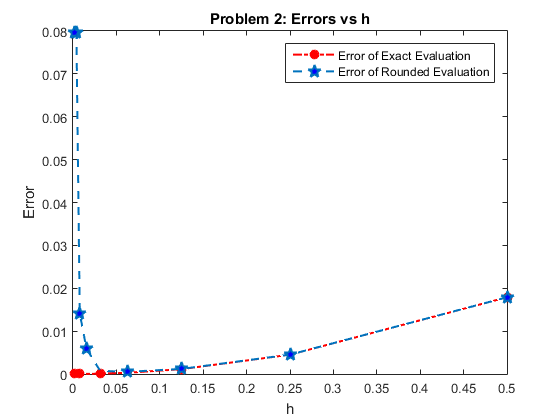

line_fewer_markers(h,ErrorExact,5,'o-.r','MarkerFaceColor','r','MarkerSize',6,'LineWidth',1.5);
hold on
line_fewer_markers(h,ErrorRound,8,'p--','MarkerSize',10,'MarkerFaceColor','b','LineWidth',1.5);
legend({'Error of Exact Evaluation','Error of Rounded Evaluation'});
title('Problem 2: Errors vs h');
box on;
xlabel('h');
ylabel('Error');

_____________________________________________Problem 2 Table_______________________________________________________________________________

      h           D_c^2(f)          D_c^2(hat(f))         Err D_c^2(f)        Err D_c^2(hat(f))      Ratio Err_E      Ratio Err_Tr
___________________________________________________________________________________________________________________________________________

   1 /   2    -0.84813289015317    -0.84812800000000     0.01789251363127     0.01789740378444
   1 /   4    -0.86152424130301    -0.86150400000000     0.00450116248143     0.00452140378444           0.25             0.25
   1 /   8    -0.86489835368714    -0.86483200000001     0.00112705009730     0.00119340378443           0.25             0.26
   1 /  16    -0.86574353117766    -0.86553600000002     0.00028187260678     0.00048940378442           0.25             0.41
   1 /  32    -0.86595492875063    -0.86528000000010     0.00007047503381     0.00074540378434           0.25              1.5
   1 /  64    -0.86600778459524    -0.86016000000063     0.00001761918920     0.00586540378381           0.25              7.9
   1 / 128    -0.86602099895754    -0.85196800000085     0.00000440482690     0.01405740378359           0.25              2.4
   1 / 256    -0.86602430256607    -0.78643200000806     0.00000110121836     0.07959340377638           0.25              5.7
   1 / 512    -0.86602512843092    -0.78643200002261     0.00000027535352     0.07959340376182           0.25                1
___________________________________________________________________________________________________________________________________________

Conclusions: We can see how with the truncated version of the function, the round off errors affect the accuracy of the calculation of the second derivative. In fact, while the error for exact evaluated $D_c^2(f(x_0))$ decreases as h decreases, the one for the truncated one $D_c^2(\hat{f}(x_0))$ decreases initially but then after a certain treshold, increases rapidly, giving a less accurate result.
